Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp

Large Image : Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ChuangYi
Certification:	CE
Model Number:	CBC-3T

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Export Standar Packing
Delivery Time:	90days
Payment Terms:	L/C, T/T, Western Union, Cash

Contact Now

Detailed Product Description

Color:	Milky White	Raw Material:	Virgin Pulp, Wood Pulp, Surgarcane Bagasse Plate, Virgin Pulp
Automation:	Semi-automatic (Fully Automatic With Robot)	Mould Plate Size:	1100*800mm
Forming Method:	Vacuum Suction	Control Method:	PLC And Touch Screen
Heating Type:	Thermal Oil Or Electric	Capacity:	3-5tons Per Day
Guarantee Period:	1 Year
Highlight:	Biodegradable Sugarcane Bagasse Plates Making Machine , Wood Pulp sugarcane plate making machine , 5 tons sugarcane pulp plate making machine

Biodegradable Sugarcane Bagasse Plates Making Machine Virgin Pulp Wood Pulp

Biodegradable Pulp Disposable Tableware Machine:

(1) The forming machine is semi-automatic forming system, but by using robots to be fully automatic, as the robot will transfer the products to be hot pressing, edge cutting.

(2) The raw material is virgin paper plate, sugarcane bagasse pulp, straw pulp, bamboo pulp,etc.

(3) One forming part in the middle, and two hot press parts on the two sides.

(4) It applies to all kinds of paper pulp tableware products, medical care products, paper pulp mask and high-quality goods packaging.

Specifications:

Product name	Degradable pulp molding dishware
Model	CBC-3T
Capacity	120~220 kgs per hour
Mould Plate size	1100*800mm
Forming method	Vacuum suction
Control method	PLC and touch screen
Workshop Requirement	1500㎡
Pulp tank material	Stainless steel 304
Electricity consumption	170~195 KWH (280 kw installed)
Water consumption	300-500kgs/h
Fuel consumption	Fuel consumption if heat by conduction oil	Natural gas 45~55 m3/h conduction oil boiler required: thermal power 660000kcal/h
	Electricity consumption if heat by conduction oil	170~195 KWH (280 kw installed)
Chemical for Water Resistance	5~8 kg/h
Chemical for Oil Resistance	1.2~2 kg/h
Operator Required	16~17 people/shift

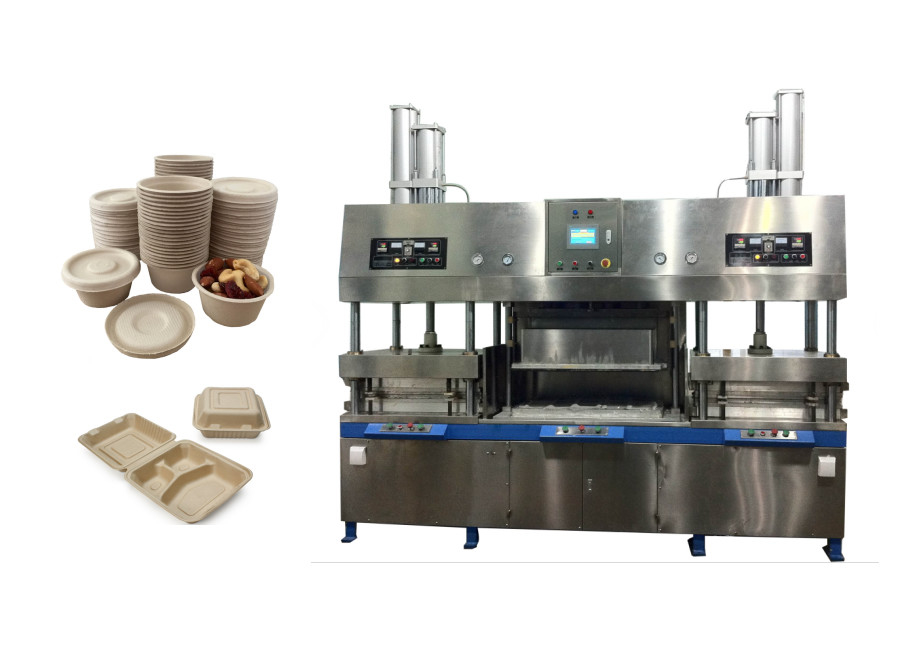

Schematic Diagram:

Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp 0

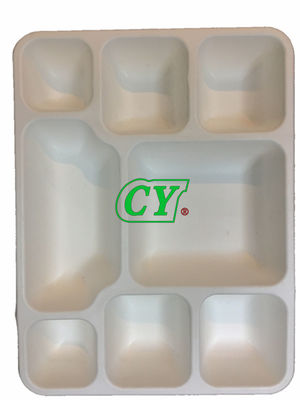

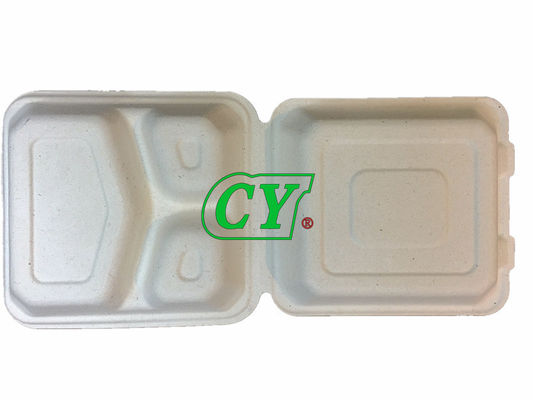

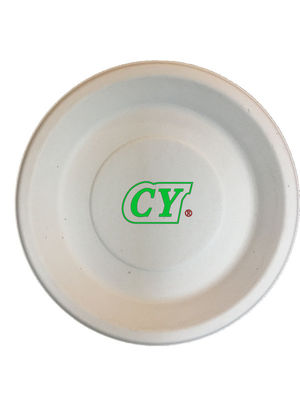

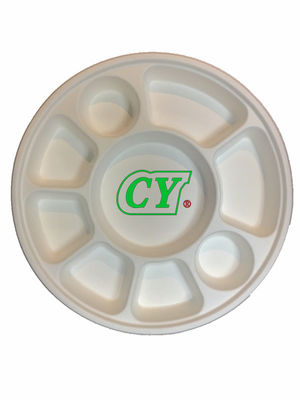

Applications:

Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp 1

Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp 2

Biodegradable Sugarcane Bagasse Clamshell Lunch Box Machine Virgin Pulp Wood Pulp 3
