Product Details:
Payment & Shipping Terms:
|
| Volume: | 3.2~8m3 | Power Installation: | 22~90KW |
|---|---|---|---|
| Capacity: | 350~1200kg/h | Material Of Tanks: | Carbon Steel/ Stainless Steel |
| Impeller Knife: | CAST IRON | Dielectric Consistence: | 4~7% |
| Highlight: | 2.5m3 Paper Pulp Auxiliary Equipments,Paper Pulp Auxiliary Equipments,Hydrapulper Machine |
||
D Type Vertical Hydra Pulper

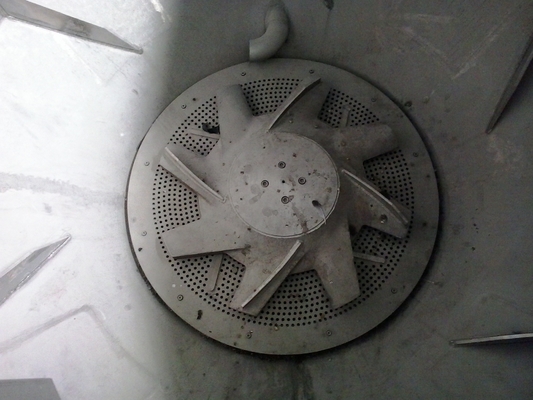

This hydra pulper is used in the process of pulp making .By matched up with conveyor belt and vibration filter, the hydra pulper is capable of disintegrating the wasted paper into pulp and meanwhile screening out the impurities and maintaining certain consistency of pulping. Hydra pulper is mainly composed of tank, rotor, flying knife and screen plate. Carbon steel or stainless steel is optional for the material of tank.
Advantages of D Type Vertical Hydrapulper:
1. Off -center position for rotor makes the waste paper contact the rotor faster and more frequently.
2. Shorten the time of pulp breaking and increase productivity without increasing the volume and momentum.
3. Can use different types of fibrous materials
Specification:
| Model of Machine | Volume | Capacity | Consistency | Power | Material of tank | Material of knife plate | |
| D type vertical hydra pulper | 1 | 3.2m³ | 350~400kg/hr | 4~7% | 22~90kw | carbon steel/ stainless steel |
carbon steel/ stainless steel |
| 2 | 5m³ | 500~600kg/hr | 4~7% | 22~90kw | carbon steel/ stainless steel |
carbon steel/ stainless steel |
|
| 3 | 8m³ | 900~1200kg/hr | 8~10% | 22~90kw | carbon steel/ stainless steel |
carbon steel/ stainless steel |

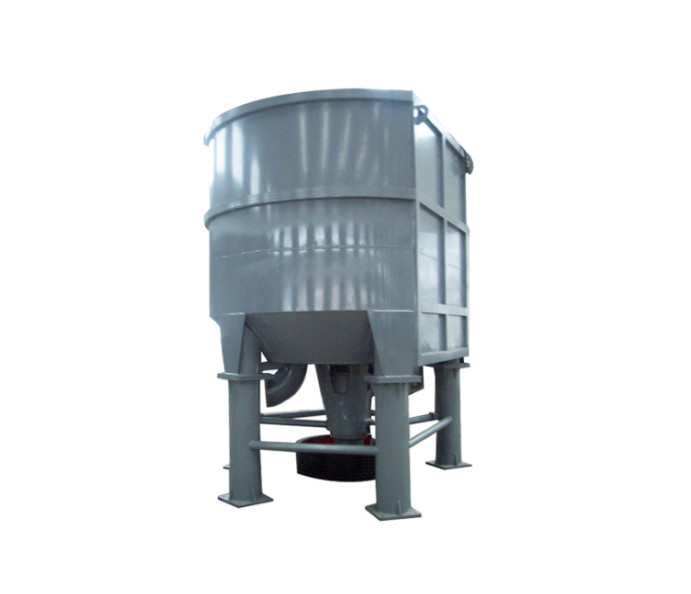

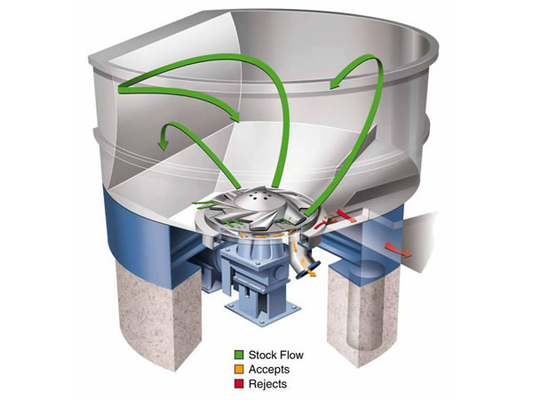

Illustration of machine:
Contact Person: Allen
Tel: +86 13416463084
