Product Details:
Payment & Shipping Terms:
|
| Production Capacity: | 1 Ton/set/day | Raw Material: | Virgin Pulp, Wood Pulp, Surgarcane Bagasse Plate, Virgin Pulp |
|---|---|---|---|
| Automation: | Semi-automatic | Mould Plate Size: | 1100*800mm/900*600mm |
| Forming Method: | Vacuum Suction | Control Method: | PLC And Touch Screen |
| Heating Type: | Conduction Oil Or Electric | Guarantee Period: | 1 Year |
| Highlight: | Fiber Non Plastic Burger Box Machine,Semi Automatic Plastic Burger Box Machine,PLC Fully Automatic Egg Tray Machine |
||

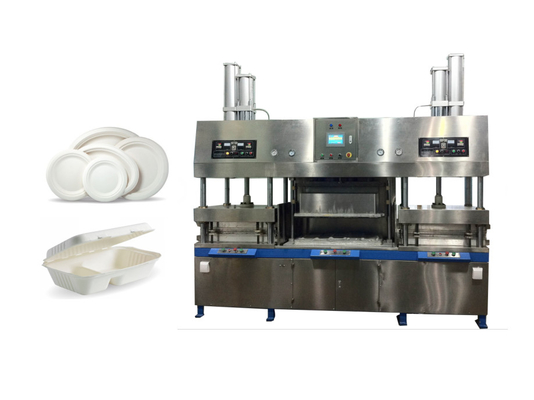

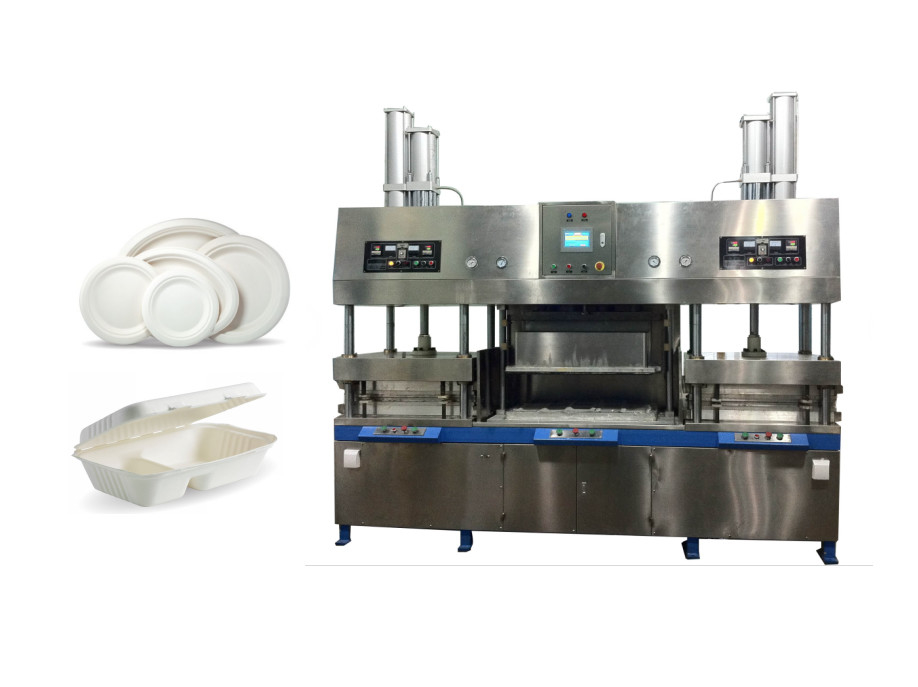

Pulp fiber non plastic burger box Machine
Molded pulp is often considered a sustainable tableware material, unlike plastic material, molded pulp is produced from natural fiber, which can be recycled again after its life-cycle of 3-4 months degradable by landfill.

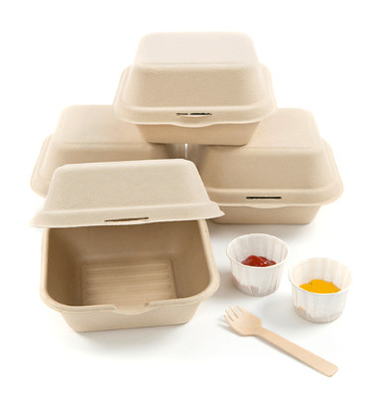

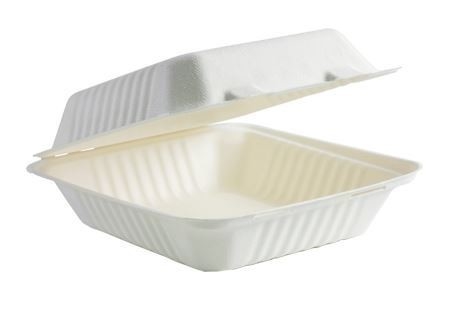

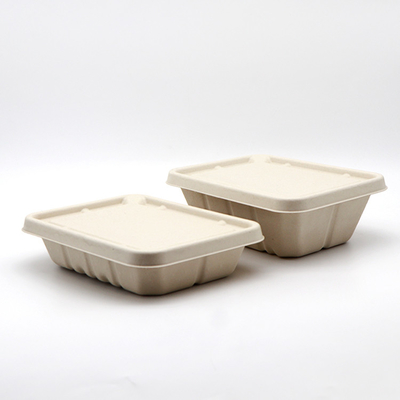

By using virgin pulp ( surgarcane bagasse, bamboo pulp, wood pulp, straw pulp) , this production line can change mold to produce all kinds of tableware such as paper plates and bowls, fast food take-away box, clamshell box, lunch box, cake tray, pizza tray, salad box, cups, cup lids.
Forming, drying and hot-pressing processes are operated in one machine by manual transfer.
| Technical Description | |
| Machine Model | Manual compostable sugarcane tray dry-in-mold wet press Machine |
| Mold Platen Size | 1100x800mm, 900x600mm |
| Production Capacity | 30-40kg per hour |
| Machine Automation | Manual/ Automatic with adding robots |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 6~9 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Production Working Process
Features:
-Less investment
-Less mold cost
-Lower skill requirement to operator
- Lower precision requirement for mold processing
Production Application:
