Product Details:
Payment & Shipping Terms:
|
| Automation: | Fully Automatic | Raw Material: | Bagasse/bamboo/wood/straw |
|---|---|---|---|
| Mold Size: | 1100*800mm | Production Capacity: | 1.2 Tons/set/day |
| Core Components: | PLC, Pressure Vessel, Other, Engine, Gear, Motor, Pump, B | Product Type: | Clamshell Box Making Machine |
| Processing Type: | Pulp Molding Machine | Control By:: | PLC + Touchscreen |
| Highlight: | Wood Pulp Burger Container Making Machine,Stacking Robot Burger Container Making Machine |
||

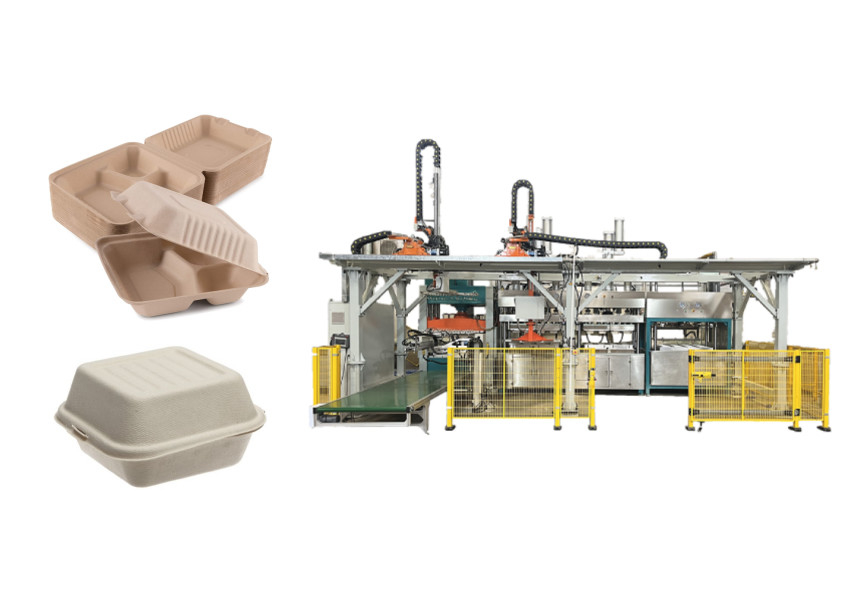

Wood Pulp Burger Container Making Machine With Trimming And Stacking Robot
This fully automatic pulp molded tableware machine is mainly applied for producing eco friendly disposable plates, bowls, trays, boxes, and other biodegradable food packaging items. Its large work table and fully automatic operation will bring you super high productivity.
The whole production is under automatic control via HIM, processes of forming, wet hot pressing, and trimming and stacking run continually, During the above processes moulds and products are transfered by walking robot arm, which has saved much labor.
| Technical Description | |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
| Mold Platen Size | 1100x800mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Horizontal Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 5~8 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
Features:
Fully automatic pulp molded tableware machine
Patented free punching free trimming technology, automatic collection, intelligent counting,15% lower production cost than semi-automatic equipment
The large work table greatly increases the daily output of finished products.
Automatically and adjustable controlled by PLC.
Pneumatic and hydralic dual control,energy saving and high efficiency.
Production Application:
-Disposable Tableware
-Paper Plates
-Paper Bowls
-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers
Production Working Process:
Application:
