Product Details:
Payment & Shipping Terms:
|
| Automation: | Fully Automatic | Forming Type: | Vacuum Suction |
|---|---|---|---|
| Mould Material:: | Aluminium Alloy:6061 | Raw Material:: | Plant Fiber Pulp |
| Drying Method: | Heating In Mold(by Eleatric Or By Oil ) | Finished Products:: | Disposable ECO-friendly Tableware |
| Highlight: | Pulp Clamshell Container Production Line,Bagasse Clamshell Container Production Line |
||

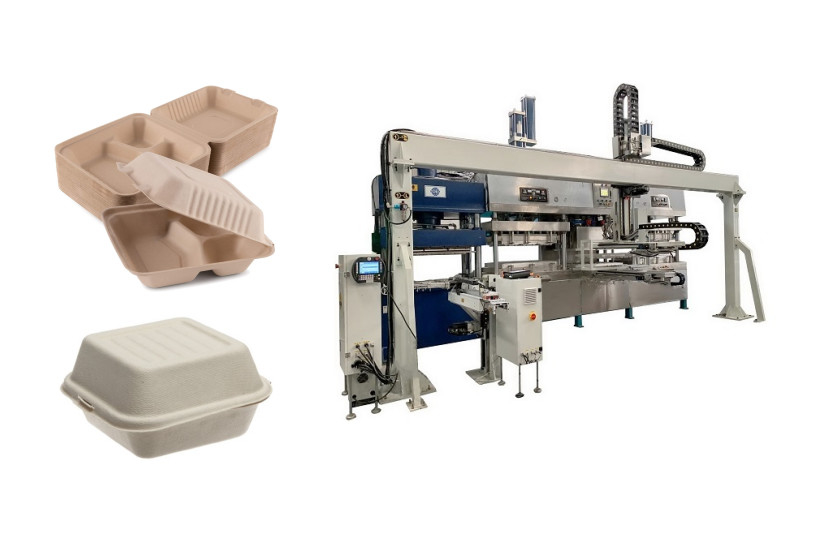

Sugarcane Bagasse Pulp Clamshell Container Production With Singlel Robot Arm
This production line is designed mainly for making paper plates and clamshell box. During the production process, the wet paper plates or clamshell box are hot pressed to smooth the surface. Paper plates and clamshell box made using this technology are water resistant and they can fully replace plastic ones. As these products are designed for direct contact with food, the input material is always virgin pulp. Recommended pulp types are bagasse, bamboo, eucalyptus, soft wood and hard wood.
| Technical Description | |
| Machine Model | |
| Mold Platen Size | 1100x800mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Horizontal Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 5~8 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Production process:
fibrillated and ground pulp is sucked onto the forming mould. Then it is transported into the drying and pressing mould. The last production step is trimming the edges .
Production Application:
-Disposable Tableware
-Paper Plates
-Paper Bowls
-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers
Production Working Process:
Applications
