Pulp Molding Finery Package Machine With Multi Joint Robot Arm

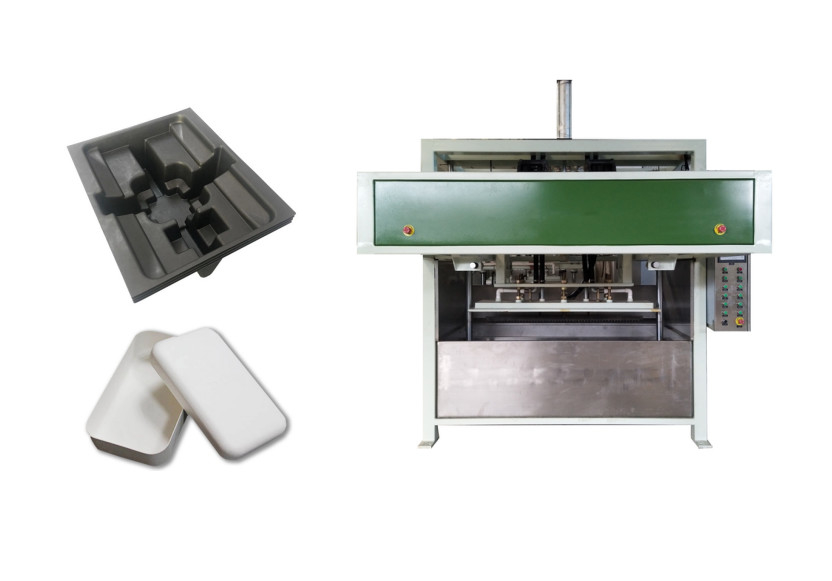

Large Image : Pulp Molding Finery Package Machine With Multi Joint Robot Arm

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ChuangYi
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	3 Sets
Price:	Negotiation
Packaging Details:	Export Standar Packing
Delivery Time:	60-90days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20sets

Contact Now

Detailed Product Description

Processing Mode:	Forming Wet Pressing	Feeding Raw Material:	Virgin Paper Pulp
Output:	60pcs/hour - 250pcs/hour;	Automatic/Manual:	Fully Automatic
Heating Method:	Conduction Oil Or Electric	Drying Mode:	Dry In Mold, Thermal Forming
Highlight:	Pulp Molding Finery Package Machine

Pulp Molding Finery Package Machine With Multi Joint Robot Arm

Description:

This machine can be applied to high-end electronic product packaging, cosmetics products packaging, and crafts packaging, etc.

Pulp molded industry package production line is composed of pulping system, main equipment (including forming,hotpressing and receiving table), multi joint robot arm for transferring the wet tray between the forming and hot pressing process. The whole set of production line is to produce mobile phones, cosmetics, jewelry, tobacco and alcohol and other high-end consumer products packaging.

Specification:

Capacity	60-250kg/ hr
Feeding raw material	Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Workshop Requirement	1000~ 1800㎡
Operator Required	4 -5 workers/ shift
Drying Method	Dry in mold, thermal forming
Forming Method	Vacuum forming
Electricity consumption	180-400kw/hr
Water consumption	1-2 tons/hr
Control	PLC+ Touch screen
Machine Material	All parts in contact with water is SS304 Stainless Steel
