Product Details:
Payment & Shipping Terms:
|
| Volumn: | 1.5~5 M³ | Power: | 22~90kw |
|---|---|---|---|
| Capacity: | 100~600kg/hr | Dielectric Consistence: | 4~7% |
| Impeller Knife: | CAST IRON | Material Code: | Carbon Steel/stainless Steel |
| Highlight: | O Type Vertical Hydro Pulper,Vertical Hydro Pulper |
||

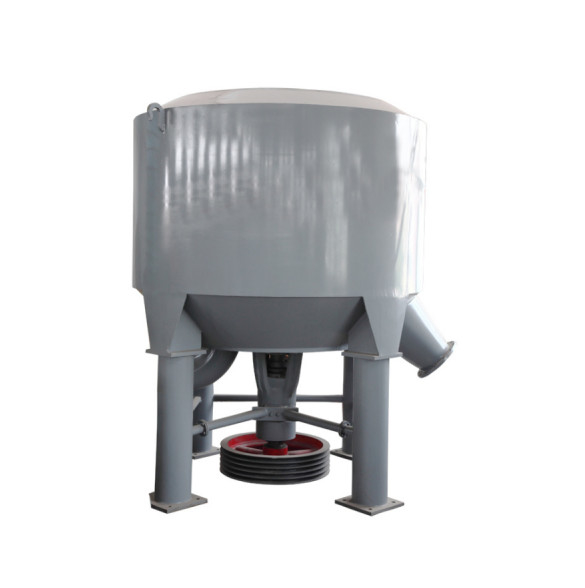

O Type Vertical Hydra Pulper
This hydra pulper is used in the process of pulp making . By matched up with the conveyor belt and vibration filter, Hydra pulper is capable of disintegrating the wasted paper into pulp and meanwhile screening out the impurities and maintaining certain consistency of pulping. Hydra pulper is mainly composed of tank, rotor, flying knife and screen plate. Carbon steel or stainless steel is optional for the material of tank.
Advantages of O Type Vertical Hydrapulper
Specification:
| Model of Machine | Volume | Capacity | Consistency of pulp | Power | Material of tank | Material of knife plate | |
| O type vertical hydra pulper | 1 | 1.5m³ | 100~150kg/hr | 3~5% | 22~90kw | carbon steel/ stainless steel | carbon steel/ stainless steel |
| 2 | 2.5m³ | 250~300kg/hr | 4~7% | 22~90kw | carbon steel/ stainless steel | carbon steel/ stainless steel | |
| 3 | 3.2m³ | 350~400kg/hr | 4~7% | 22~90kw | carbon steel/ stainless steel | carbon steel/ stainless steel | |
| 4 | 5m³ | 500~600kg/hr | 4~7% | 22~90kw | carbon steel/ stainless steel | carbon steel/ stainless steel | |
| 5 | 8m³ | 900~1200kg/hr | 8~10% | 22~90kw | carbon steel/ stainless steel | carbon steel/ stainless steel |
Work flow chart:
Illustration of machine:
