Smart Electronic Paper Tray Production Line With Multi - Joint Robot Arm

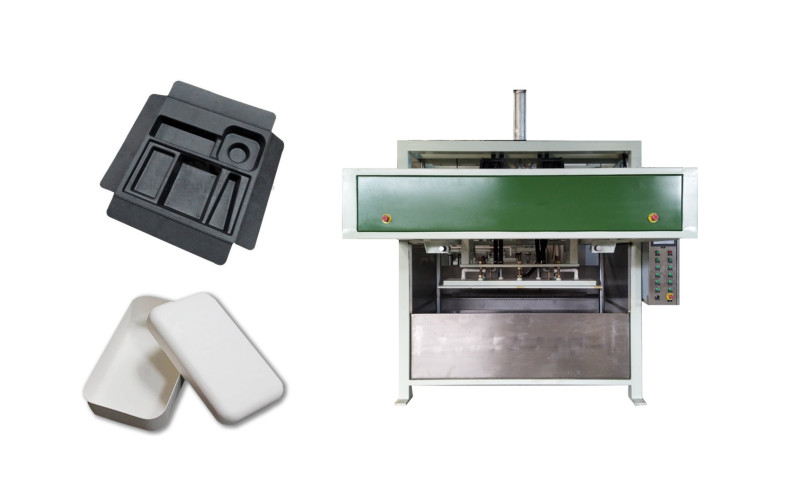

Large Image : Smart Electronic Paper Tray Production Line With Multi - Joint Robot Arm

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ChuangYi
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	3 Sets
Price:	Negotiation
Packaging Details:	Export Standar Packing
Delivery Time:	60-90days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20sets

Contact Now

Detailed Product Description

Processing Mode:	Forming Wet Pressing	Feeding Raw Material:	Virgin Paper Pulp
Capacity:	60pcs/hour - 250pcs/hour;	Automatic/Manual:	Fully Automatic
Heating Method:	Conduction Oil Or Electric	Drying Mode:	Dry In Mold, Thermal Forming
Highlight:	Electronic Paper Tray Production Line , Robot Arm Paper Tray Production Line

Smart Electronic Paper Tray Production Line with multi-joint robot arm

Description:

The thermoforming machine is mainly applied for producing pulp molding packaging for high end electronic consumer products, , high added value art and crafts and so on. With help of multi-joint robot arm, the production is full automatic

Specification:

Capacity	60-250kg/ hr
Feeding raw material	Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Workshop Requirement	1000~ 1800㎡
Operator Required	4 -5 workers/ shift
Drying Method	Dry in mold, thermal forming
Forming Method	Vacuum forming
Electricity consumption	180-400kw/hr
Water consumption	1-2 tons/hr
Control	PLC+ Touch screen
Machine Material	All parts in contact with water is SS304 Stainless Steel

Features:

-Flexible machine setting
- Accurate control of all performance
- Multiple choice of mold platen size, can maximum the output
- Fully automatic with robot arm

Production Working Process:

Smart Electronic Paper Tray Production Line With Multi - Joint Robot Arm 0
