| Mold Plate Size: | 1100mm*800mm | Forming Method: | Vacuum Suction |
|---|---|---|---|
| Driving Method: | Air Cylinder | Production Capacity: | 1 Ton/set/day |
| Drying Method: | Dry In Mould | Heating By: | Conduction Oil Or Electric |
| Guarantee Period: | 1 Year | Control Method: | PLC And Touch Screen |
| Highlight: | Paper Pulp Food Tray Producing Machine,Robot Arms Food Tray Producing Machine,PLC Food Tray Producing Machine |
||

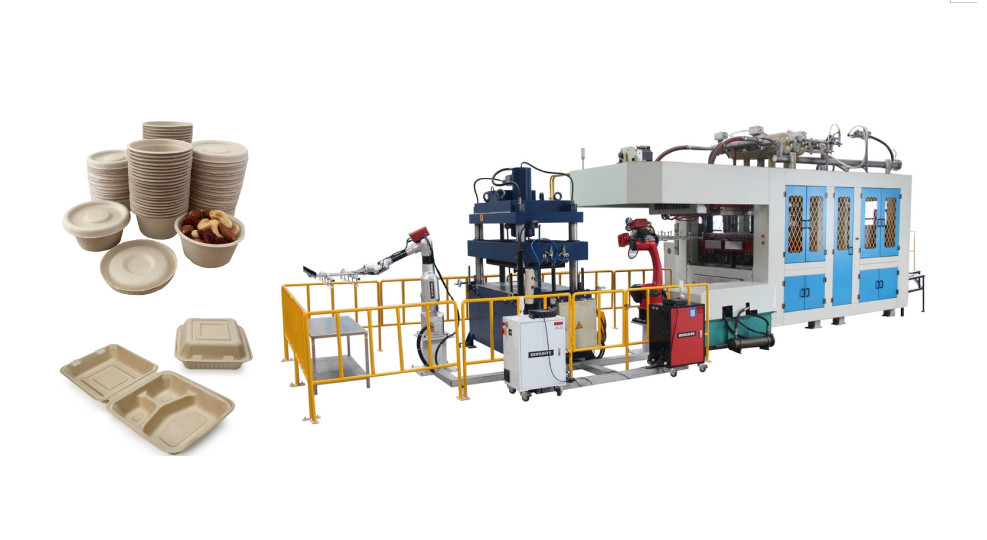

Smart disposable paper pulp food tray producing machine with two robot arms
Molded pulp is often considered a sustainable tableware material, unlike plastic material, molded pulp is produced from natural fiber, which can be recycled again after its life-cycle of 3-4 months degradable by landfill.
By using virgin pulp ( surgarcane bagasse, bamboo pulp, wood pulp, straw pulp) , this production line can change mold to produce all kinds of tableware such as paper plates and bowls, fast food take-away box, clamshell box, lunch box, cake tray, pizza tray, salad box, cups, cup lids.
The whole production is under automatic control via HIM, processes of forming, wet hot pressing, and trimming and stacking run continually, During the above processes moulds and products are transfered by 2 mechanical robot arm, which has saved much labor.
| Technical Description | |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
| Mold Platen Size | 1100x800mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Horizontal Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 5~8 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
Features:
- The process of production is fully automatic.
- low labor cost
-capable to make tableware with low demolding angle
-capable to make trimming- free products
- High precision, positioning accuracy, easy control and stable running.
Production Application:
-Disposable Tableware
-Paper Plates And Bowls
-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers
Production Working Process:

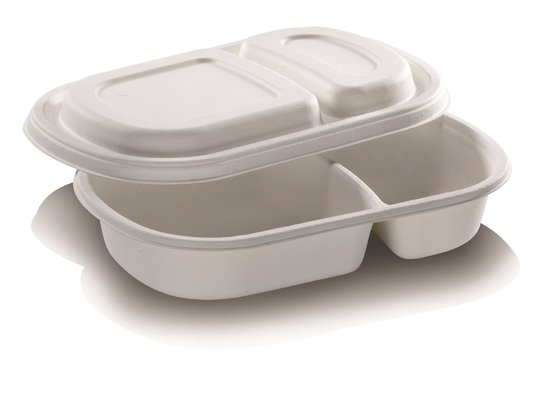

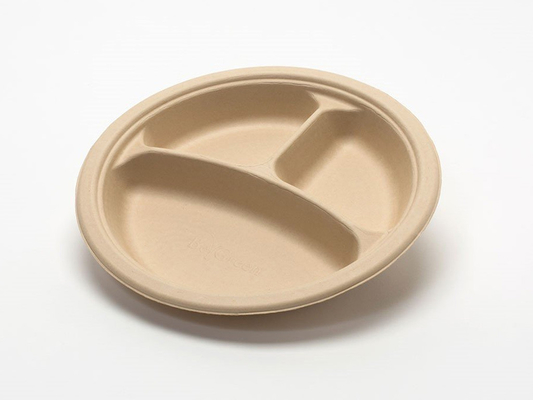

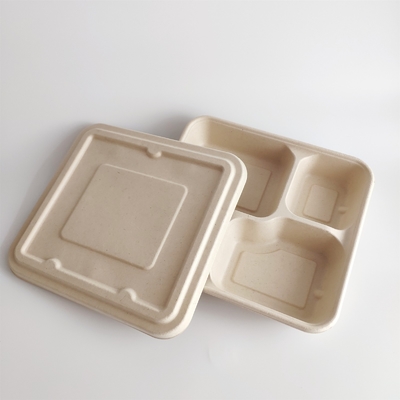

Illustration of product:
