Main Parameters: Model Type TA-05B Automation Fully-automatic Forming Machine Quantity 5 sets of forming machines Capacity 7000 pcs/h (120~150kg/h) Forming Type Vacuum suction Workshop Required 600 m2 Electricity Consumption 450 kw Electricity Installed 220 kw Raw Material bagasse pulp/bamboo pulp/straw pulp/wood pulp Finished products Tableware, plate, bowl, dinner box, cup... Material Consumption 120 ~ 150 kg/h Water Consumption 500 ~ 600 kg/h Worker Requirement 6 persons Container Requirement for Shipment 4 x 40’ HQ Drying Method Drying in mould(by Thermal Oil or Electricity or Steam) Notes: The Capacity calculated base on 8” round dish(weight ~16g). The capacity may be different for other products. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. Main Features: Automation Full automatic pulp molding tableware production line(forming/drying/pressing integrative machine) Water Trimming With water trimming process, can be trimming free. The edge trimming machine is optional. Fuel Consumption Can use electricity or thermo conduction oil. If choose thermo conduction oil heating, need to prepare a boiler. Environment Impact No waste water or waste air will be discharge during running. Final Products Food grade and 100% biodegradable and environmental friendly.

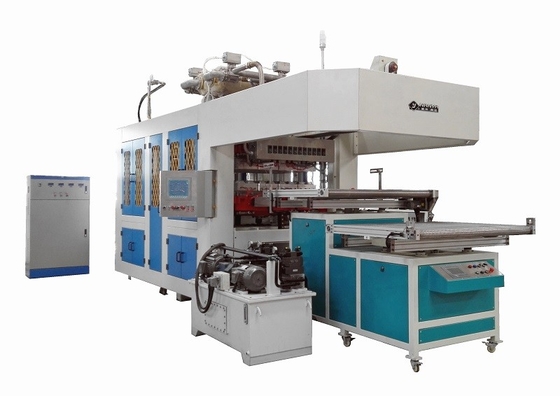

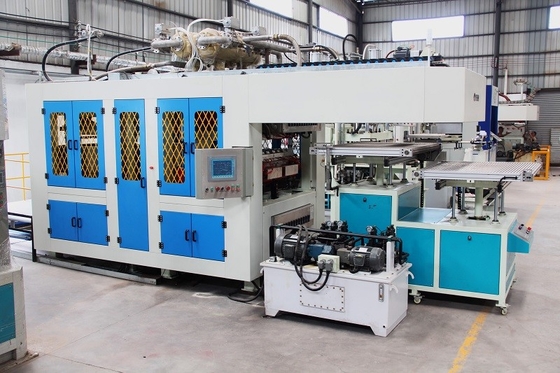

High-Performance Fully Automatic Pulp Molding Machine Production For Disposable Tableware
Main Parameters: Model Type TA-05B Automation Fully-automatic Forming Machine Quantity 5 sets of forming machines Capacity 7000 pcs/h (120~150kg/h) Forming Type Vacuum suction Workshop Required 600 m2 Electricity Consumption 450 kw Electricity Installed 220 kw Raw Material bagasse pulp/bamboo pulp/straw pulp/wood pulp Finished products Tableware, plate, bowl, dinner box, cup... Material Consumption 120 ~ 150 kg/h Water Consumption 500 ~ 600 kg/h Worker Requirement 6 persons Container Requirement for Shipment 4 x 40’ HQ Drying Method Drying in mould(by Thermal Oil or Electricity or Steam) Notes: The Capacity calculated base on 8” round dish(weight ~16g). The capacity may be different for other products. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. Main Features: Automation Full automatic pulp molding tableware production line(forming/drying/pressing integrative machine) Water Trimming With water trimming process, can be trimming free. The edge trimming machine is optional. Fuel Consumption Can use electricity or thermo conduction oil. If choose thermo conduction oil heating, need to prepare a boiler. Environment Impact No waste water or waste air will be discharge during running. Final Products Food grade and 100% biodegradable and environmental friendly.
| Main Parameters |
|
| Model Type |
YC040 |
| Automation |
Fully - automatic |
| Forming Machine Quantity |
5 sets of forming machines |
| Capacity |
7000 pcs/h (120~150kg/h) |
| Forming Type |
Vacuum suction |
| Workshop Required |
600 m² |
| Electricity Consumption |
450 kw |
| Electricity Installed |
220 kw |
| Raw Material |
bagasse pulp/bamboo pulp/straw pulp/wood pulp |
| Finished products |
Tableware, plate, bowl, dinner box, cup... |
| Material Consumption |
120 ~ 150 kg/h |
| Water Consumption |
500 ~ 600 kg/h |
| Worker Requirement |
6 persons |
| Container Requirement for Shipment |
4 x 40' HQ |
| Drying Method |
Drying in mould(by Thermal Oil or Electricity or Steam) |
- The Capacity calculated base on 8" round dish(weight ~16g). The capacity may be different for other products.
- Workshop size is for reference only and could be adjusted according to actual size of client's plant.
Applications:
In bustling city takeout shops, there's a great need for lunch boxes and plates. This product, with a simple mold change, can quickly churn out various paper pulp containers in different shapes and sizes, perfect for holding all sorts of delicious food.
At supermarket fresh meat sections, meat packaging used to be a headache. Now, this product can make sturdy paper pulp meat trays by changing the mold, keeping meat fresh and reassuring customers.
Schools and factory canteens, serving countless meals daily, rely on this product to supply plenty of paper pulp plates and bowls. These eco-friendly, biodegradable items cause no environmental burden.
In dessert shops, the product can produce elegant paper pulp cake boxes and dessert plates after mold changes, protecting treats and enhancing their appeal. In a word, this product's mold-changing function makes it a great fit for various tableware packaging scenarios, offering efficient and green solutions.
| Finished Products: |
| By changing moulds, the same machine can make different products |
| Tableware Products |
Paper plates, paper bowls, cups, lunch boxes, container, etc. |
| High quality packages |
Mobile phone package, camera package, makeup box, |
| High quality food package |
Cup holder, fruit trays, egg trays, egg box, |
| Artware |
Mask, Christmas balls, Easter Eggs, boutiques... |
| Disposable Medical Care Products |
Bedpan, sick pad, female urinal... |
Customization:
Customized Services for Paper Pulp Molding Machinery
- Brand Name: Chuangyi
- Model Number: YC040
- Place of Origin: China
- Control System: PLC+ Touch Screen
- Certificate: ISO9001, CE
- Raw Material: Virgin Pulp
- Capacity: 7000 Pcs/hour
- Automatic Grade: Fully Automatic
Chuangyi's paper pulp molding machinery is perfect for food container disposable. It is equipped with PLC control system and ISO9001, CE certification. The raw material is Virgin Pulp and the capacity is 7000 Pcs/hour. It's Automatic grade.
Support and Services:
Paper Pulp Molding Machinery Technical Support and Service
At Guangzhou Chuangyi, we offer technical support and service for our Paper Pulp Molding Machinery. Our team of experts in paper pulp molding machinery are available to answer any questions you may have. We also provide 24/7 customer service for any emergency issues that may arise.
Our technical support includes:
- Troubleshooting issues with the Paper Pulp Molding Machinery
- Providing maintenance and repair services
- Supplying spare parts and accessories
- Providing on-site technical support
- Providing technical training
We are committed to providing you with the best technical support and service for our Paper Pulp Molding Machinery. Contact us today for any questions you may have.
Packing and Shipping:
Packaging and Shipping of Paper Pulp Molding Machinery
Paper pulp molding machinery is generally shipped in a wooden box, wrapped in a waterproof material, and secured with metal straps. The box should be properly labeled with the product name, part number, and other relevant information.
Prior to shipping, the paper pulp molding machinery should be inspected for any damage. If any damage is found, it should be reported to the shipping company. All parts should be securely packed and any areas of potential damage should be reinforced.
In order to ensure the safe delivery of the paper pulp molding machinery, the box should be securely sealed and labeled with a “Fragile” or “Handle With Care” sticker.
In addition, the shipping company should be notified of the type of cargo, the weight, size, and any hazardous materials contained within the package. It is also important to check with the shipping company regarding any special requirements or restrictions for shipping the paper pulp molding machinery.
FAQ:
- Q1: What is the brand name of the Paper Pulp Molding Machinery ?
- A1: The brand name of the Paper Pulp Molding Machinery is Chuangyi.
- Q2: What is the model number of the Paper Pulp Molding Machinery?
- A2: The model number of the Paper Pulp Molding Machinery is YC040.
- Q3: Where is the Paper Pulp Molding Machinery manufactured?
- A3: The Paper Pulp Molding Machinery is manufactured in China.
- Q4: What are the features of the Paper Pulp Molding Machinery?
- A4: The Paper Pulp Molding Machinery has a variety of features, such as high efficiency, low energy consumption, and stable performance.
- Q5: What kind of after-sales service does the Paper Pulp Molding Machinery provide?
- A5: The Paper Pulp Molding Machinery provides comprehensive after-sales services, including professional technical guidance, product maintenance and repair, and spare parts supply.
