Product Details:
Payment & Shipping Terms:
|
| Automation: | Automatic With Horizontal Walking Robot Arm | Mold Plate Size: | 1100*800mm |
|---|---|---|---|
| Production Capacity: | 1 Ton/set/day | Forming Method: | Vacuum Suction |
| Drying Method: | Thermal Drying And Pressing. | Heating By: | Conduction Oil Or Electric |
| Control Method: | PLC And Touch Screen | Guarantee Period: | 1 Year |
| Highlight: | Fully Automatic Pulp Tableware Production Line,Robot Arm Pulp Tableware Production Line,Vacuum Suction Paper Pulp Molding Machinery |
||
Fully automatic pulp tableware production line with Horizontal walking robot arm
Molded pulp is often considered a sustainable tableware material, unlike plastic material, molded pulp is produced from natural fiber, which can be recycled again after its life-cycle of 3-4 months degradable by landfill.
By using virgin pulp ( surgarcane bagasse, bamboo pulp, wood pulp, straw pulp) , this production line can change mold to produce all kinds of tableware such as paper plates and bowls, fast food take-away box, clamshell box, lunch box, cake tray, pizza tray, salad box, cups, cup lids.
The whole production is under automatic control via HIM, processes of forming, wet hot pressing, and trimming and stacking run continually, During the above processes moulds and products are transfered by walking robot arm, which has saved much labor.
| Technical Description | |
| Machine Model | |
| Mold Platen Size | 1100x800mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Horizontal Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 5~8 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Features:
-Shorter delivery time
-Flexible, accurate and stable production;
-Safe and simple operation and maintenance;
Production Application:
-Disposable Tableware
-Paper Plates
-Paper Bowls
-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers
Production Working Process:

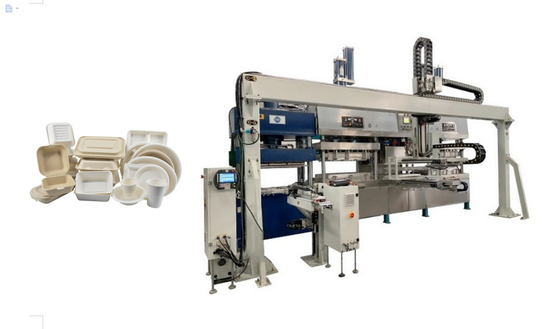

Illustration of machine and product:
