Pulp Fiber Non Plastic Dishware Making Machine Semi Automatic

I'm Online Chat Now

Pulp Fiber Non Plastic Dishware Making Machine Semi Automatic

Pulp Fiber Non Plastic Dishware Making Machine Semi Automatic
Pulp Fiber Non Plastic Dishware Making Machine Semi Automatic

Large Image :  Pulp Fiber Non Plastic Dishware Making Machine Semi Automatic

Product Details:
Place of Origin: Guangdong, China
Brand Name: ChuangYi
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 3 Sets
Price: Negotiation
Packaging Details: Export Standar Packing
Delivery Time: 60-90days
Supply Ability: 20sets
Detailed Product Description
Application: Food & Beverage Factory, Restaurant, Home Use Raw Material: Virgin Pulp, Wood Pulp, Surgarcane Bagasse Plate, Virgin Pulp
Automation: Semi-automatic Mould Plate Size: 1100*800mm/900*600mm
Capacity: 60-90 Pcs/min Forming Method: Vacuum Suction
Heating Type: Thermal Oil Or Electric Product Type: Paper Plate Machine
Highlight:

Plastic Dishware Making Machine

,

Semi Automatic Plastic Dishware Making Machine

Pulp Fiber Non Plastic Renewable Dishware Machine Semi Automatic





Description:



Molded pulp is often considered a sustainable tableware material, unlike plastic material, molded pulp is produced from natural fiber, which can be recycled again after its life-cycle of 3-4 months degradable by landfill.

Paper molding is done to create paper articles such as egg trays, apple coverings, fruit trays, seed trays, shoe trays, paper bags, letter cards, etc.

There are different designs of molding dies. These dies matter in the quality and shape of the product. Generally, there are two types of pulp molding machines – Forming mold and Transfer mold.

The forming mold is used to shape the prepared pulp as required. Whereas, the transfer mold aims to help to get the wet pulp products out from the forming mold.



Specification:





Raw material 160-350g/m2
Two side pe coated paper and one side pe coated paper
Heating Type Thermal Oil or Electric
Forming method Vacuum Suction
Capacity 60-90 pcs/min
Main motor power 1.5 kw
Energy consumption 6-6.5 kw
Total power 11.5 kw
Mould plate size 1100*800mm/900*600mm
Weight 2200Kg
Package dimension 1750*1350*1850 mm





Q & A:



What is pulp molding process?


The molding process of pulp molded products is mainly through a series of methods such as vacuum molding and grouting molding, so that the raw pulp fibers are formed into the shape designed by the mold, and vacuum molding is the most commonly used and most effective one.





Is pulp fiber recyclable?


Recovered fiber can be used to produce new paper products made entirely of recovered fiber (i.e. 100 percent recycled content) or from a blend of recovered and virgin fiber. Fiber cannot, however, be recycled endlessly.







Production Working Process:



Pulp Fiber Non Plastic Dishware Making Machine Semi Automatic 0









Illustrations of Machine & Product:

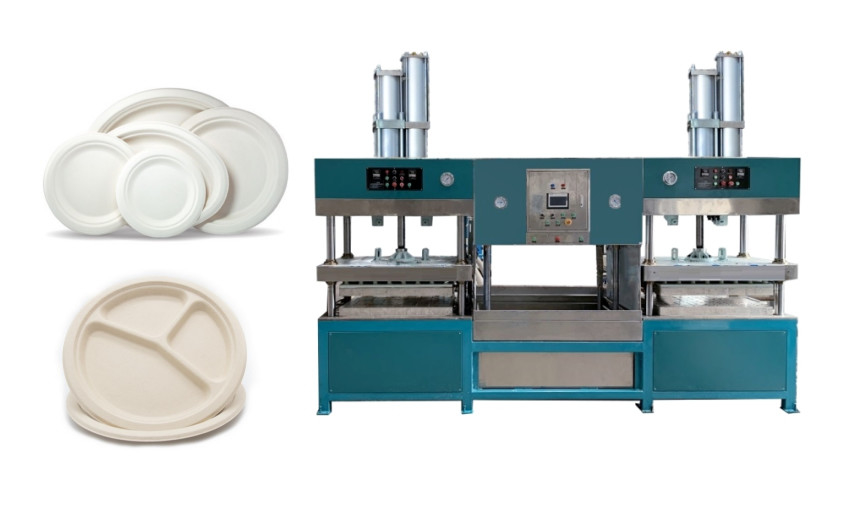

Pulp Fiber Non Plastic Dishware Making Machine Semi Automatic 1

Pulp Fiber Non Plastic Dishware Making Machine Semi Automatic 2
