Nature Color Pulp Split Type Dry In Mould Machine To Prodcue Electronic Paper Tray

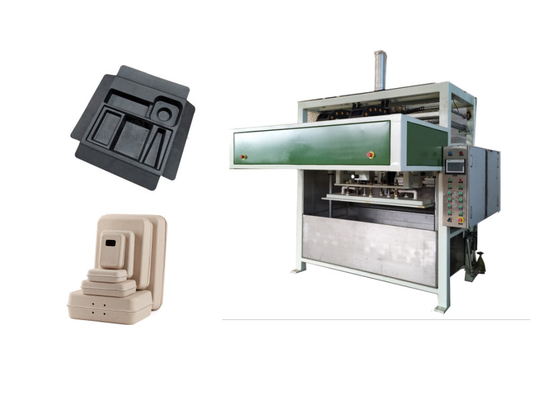

Large Image : Nature Color Pulp Split Type Dry In Mould Machine To Prodcue Electronic Paper Tray

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ChuangYi
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	3 Sets
Price:	Negotiation
Packaging Details:	Export Standar Packing
Delivery Time:	60-90days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20sets

Contact Now

Detailed Product Description

Processing Type:	Forming Wet Pressing	Raw Material:	Virgin Paper Pulp
Capacity:	60pcs/hour - 250pcs/hour;	Automation:	Fully Automatic
Control System:	PLC With HMI Screen	Wall Thickness:	0.4–1.5 mm
Highlight:	Split Type Dry In Mould Machine , Paper Tray Dry In Mould Machine

Nature Color Pulp Split-Type Dry In Mould Machine To Prodcue Electronic Paper Tray

Description:

This production line is designed mainly for manufacturing trays in complex shapes or if a higher emphasis is placed on the surface quality. During the production process the wet trays are hot pressed to smooth the surface. Such trays are mainly used for premium electronics, the cosmetics or car industry or components in complex shapes or those that are small. The input material is mainly pure pulp, testliner, kraftliner or tissue.

Specification:

Capacity	60-250kg/ hr
Feeding raw material	Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Workshop Requirement	1000~ 1800㎡
Operator Required	4 -5 workers/ shift
Drying Method	Dry in mold, thermal forming
Forming Method	Vacuum forming
Electricity consumption	180-400kw/hr
Water consumption	1-2 tons/hr
Control	PLC+ Touch screen
Machine Material	All parts in contact with water is SS304 Stainless Steel

Q & A:

Is pulp packaging sustainable?

Moulded (or molded) pulp is a highly sustainable packaging material that is made from renewable and biodegradable resources like recycled paper.

Is molded fiber biodegradable?

Molded fiber products, manufactured with waste paper or other natural fibers (which are essentially cellulose) and are recyclable along with other waste paper are biodegradable, and compostable where facilities are available.

Production Working Process:

Nature Color Pulp Split Type Dry In Mould Machine To Prodcue Electronic Paper Tray 0

Applications

Nature Color Pulp Split Type Dry In Mould Machine To Prodcue Electronic Paper Tray 1
