Product Details:
Payment & Shipping Terms:
|
| Application: | Plate/bowl/cup/food Container | Raw Material: | Virgin Pulp, Wood Pulp, Surgarcane Bagasse Plate, Virgin Pulp |
|---|---|---|---|
| Drying Method: | Dry In Mold, Thermal Forming | Machine Function: | Forming, Drying, Hot Press All In One Machine |
| Machine Automation: | Manual/ Automatic With Adding Robots | Production Capacity: | 30-40kg Per Hour |
| Highlight: | Pizza Tray Making Machine |
||

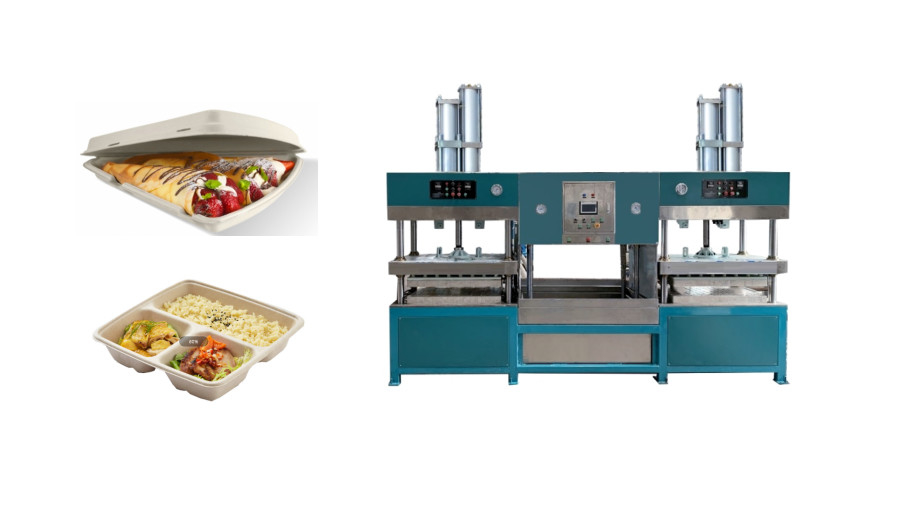

Replace PP PE Pulp Fiber Salad Bowl Pizza Tray Making Machine
Description:
The machine line is mainly for producing a wide range of tableware such as salad bowl, pizza tray , meat tray. The processes of forming, drying, hot-pressing will be automatically completed on the same machine
Specification:
| Technical Description | |
| Machine Model | Manual compostable sugarcane tray dry-in-mold wet press Machine |
| Mold Platen Size | 1100x800mm, 900x600mm |
| Production Capacity | 30-40kg per hour |
| Machine Automation | Manual/ Automatic with adding robots |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 6~9 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Raw material & Production process:
The raw material is virgin wood paper pulp, sugarcane bagasse pulp, wheat straw pulp,rice husk pulp, bamboo pulp or other natural fiber pulp. etc.
It can also recycle the rice straw, corn straw,sugarcane waste natural plants into specialized pulping mill system to processing into the pulping sheet, and then supply into the pulp molded thermoforming machine line, producing the high quality food containers, industrial finery packages, etc
The high-end Molded pulp production line process: pulping, forming, drying, hot pressing and trimming process. The pulp will be adjusted to a certain consistency, and then it will be formed on the mold of the forming machine by vacuum suction.
Production Working Process:
Illustrations of Machine & Product:
