Replace PP PE Pulp Fiber Salad Bowl Pizza Tray Making Machine
Description:
The machine line mainly produces tableware plate products, cups, glasses and other higher quality both smooth side of packages products, like electrical inner packages, elegant mask,etc. It is for high demand of packages products machine line, which the process of drying, hot-pressing, forming will be automatic continuous completed on the same machine,with high automatic of PLC+ Touch screen control whole process.
It’s mainly used for high quality pulp molded products. Such as dishware, artware, disposable medical care products, high quality industrial package.This type of production line is constituted by a hydrapulper system, a fully automatic thermoforming machine(forming/drying/pressing integrative machine), and corollary equipments.
Specification:
| Technical Description |
| Machine Model |
Replace PP PE Pulp Fiber Salad Bowl Pizza Tray Making Machine |
| Mold Platen Size |
1100x800mm, 900x600mm |
| Production Capacity |
30-40kg per hour |
| Machine Automation |
Manual/ Automatic with adding robots |
| Workshop Requirement |
~ 800㎡ |
| Operator Required |
6~9 people/shift |
| Feeding raw material |
Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method |
Vacuum forming |
| Drying Method |
Dry in mold, thermal forming |
| Machine Function |
Forming, drying, hot press all in one machine |
| Control |
PLC+ Touch screen |
| Machine Material |
All parts in contact with water is SS304 Stainless Steel |
Raw material & Production process:
The raw material is virgin wood paper pulp, sugarcane bagasse pulp, wheat straw pulp,rice husk pulp, bamboo pulp or other natural fiber pulp. etc.
It can also recycle the rice straw, corn straw,sugarcane waste natural plants into specialized pulping mill system to processing into the pulping sheet, and then supply into the pulp molded thermoforming machine line, producing the high quality food containers, industrial paper packages, etc
The high-end Molded pulp production line process: pulping, screening and refining process. The pulp will be adjusted to a certain consistency, and then it will be formed on the mold of the forming machine by vacuum suction. The final molded pulp tableware can be produced after drying, pressing, trimming and die-cutting.
Production Working Process:

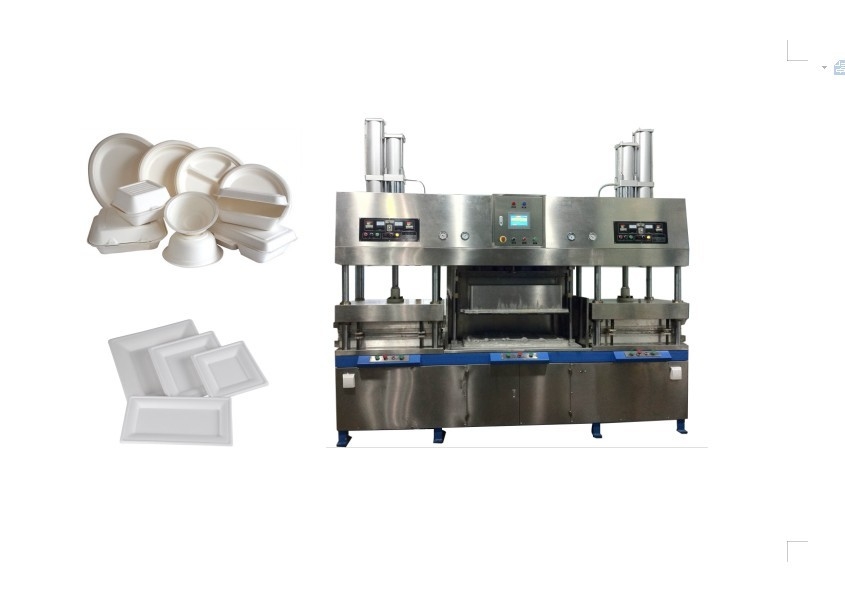

Illustrations of Machine & Product:
