Product Details:
Payment & Shipping Terms:
|
| Application: | Burger Box /meat Tray | Raw Material: | Virgin Pulp, Wood Pulp, Surgarcane Bagasse Plate, Virgin Pulp |
|---|---|---|---|
| Forming Method: | Vacuum Forming | Machine Function: | Forming, Drying, Hot Press All In One Machine |
| Operator Required: | 6~9 People/shift | Machine Automation: | Manual/ Automatic With Adding Robots |
| Highlight: | Burger Box Meat Tray Forming Machine,Paper Pulp Meat Tray Forming Machine |
||
Replace Foam Paper Pulp Burger Box Meat Tray Forming Machine
Description:
The pulp molded tableware production line is composed of a pulping system, forming equipment, vacuum system, high pressure water system and an air compressor system, and is used to produce disposable pulp molded tableware. The production line uses pulp from sugarcane, bamboo, wood, reeds, straw and other pulp boards as raw materials. The materials are prepared into a pulp with a certain concentration through the processes of hydra pulping, refining, adding chemical additives, etc. They are evenly attached to a special metal mold to form a wet blank product. A disposable pulp molded tableware product is produced through the processes of drying, hot pressing, trimming, and stacking. The average unit capacity of the forming system is 1T / day. And It can be customized per the actual order from the customer.
Specification:
| Technical Description | |
| Machine Model | Manual compostable sugarcane tray dry-in-mold wet press Machine |
| Mold Platen Size | 1100x800mm, 900x600mm |
| Production Capacity | 30-40kg per hour |
| Machine Automation | Manual/ Automatic with adding robots |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 6~9 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Feature:
- Save initial capital investment
- To give full play to the advantages of cheaper labor areas
- Lower cost of matching with molds
- Simple and flexible operation and maintenance
Production Working Process:

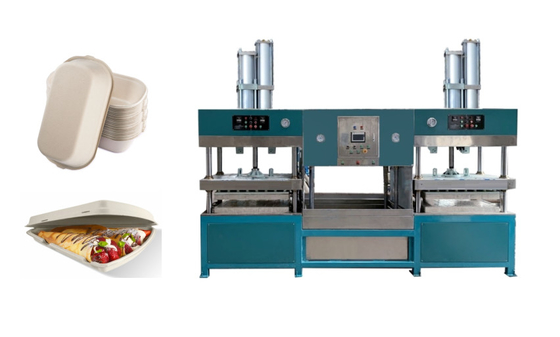

Illustrations of Machine & Product:
