Product Details:
Payment & Shipping Terms:
|
| Automation: | Fully Automatic | Raw Material: | Bagasse/bamboo/wood/straw |
|---|---|---|---|
| Mold Size: | 1100*800mm | Production Capacity: | 1.2 Tons/set/day |
| Thermal Power: | 120000kcal/hr | Heating By Electricity: | 141kw |
| Forming Method: | Vacuum Suction | Control Method: | PLC And Touch Screen |
| Highlight: | Bamboo Pulp Auto Tableware Making Machine,Robot Arms Pulp Tableware Making Machine |
||

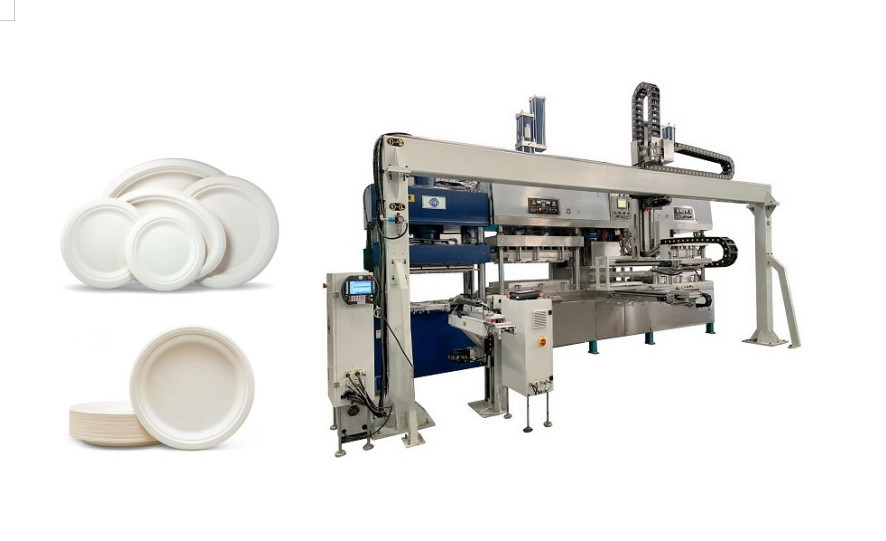

Fully automatic pulp tableware production line with Horizontal walking robot arm
1.Forming, hot pressing, trimming and stacking are fully automatic operated.
2. The vacuum system is used for product forming and transferring.
3. High-pressure water system is used for cleaning the molds and the rough edges of products.
| Technical Description | |
| Machine Model | |
| Mold Platen Size | 1100x800mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Horizontal Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 5~8 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Features:
1. Able to finish mesh replacement within as short as 5 mins;
2. Screen frame transfer method is adopted,which reduces the consumption of vacuum and compressed air; less hole blocking chances and time for mold maintenance extended by 1-2 months,black spots over the products avoided;
3. Fully automatic operation on forming, hot pressing, trimming, testing and stacking, reducing labor cost.
Production Application:
-Disposable Tableware
-Paper Plates
-Paper Bowls
-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers
Production Working Process:
Applications:
