Product Details:
Payment & Shipping Terms:
|
| Automation: | Fully Automatic | Raw Material: | Bagasse/bamboo/wood/straw |
|---|---|---|---|
| Mold Platen Size: | 1300*1100 Or 1100*800mm | Production Capacity: | 30-40kg/hr/set |
| Thermal Power: | 160000kcal/hr Or 120000kcal/hr | Water Comsuption: | 1-1.2ton/hr |
| Power Comsuption: | 200-250kw/hr | Worker: | 6-9 Person/shift |
| Highlight: | Pulp Molding Salad Box Production Line,Automatic Salad Box Production Line |
||

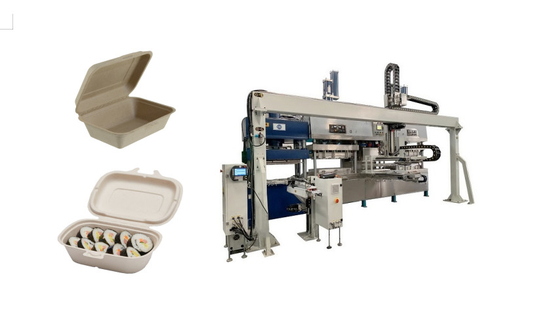

Automatic pulp molding fiber nature color salad box production line with robot arm
Description
The automatic production line go through the process pulping, forming, drying, hot pressing trimming, By applying robot arm and stacking robot, the production is high efficient and stable. it can produce a variety of disposable tableware , such as pizza tray,Meal box,bagasse plate,salad bowl,burger box and so on .
| Technical Description | |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
| Mold Platen Size | 1100x800mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Horizontal Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 5~8 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
Know-how
Hot pressing process
Once the molded pulp products are subjected to pressure and high temperature in the mold, its moisture will be removed quickly. Besides, the shape and size of the product can be controlled accurately. Generally, it is used in the production of paper tableware, fine packaging, etc. Fuel, oil, gas, electricity, steam and conduction oil are used as heat source.
Production Working Process:
Application:
