Product Details:
Payment & Shipping Terms:
|
| Automation: | Fully Automatic | Raw Material: | Bagasse/bamboo/wood/straw |
|---|---|---|---|
| Mold Platen Size: | 1300*1100 Or 1100*800mm | Production Capacity: | 30-40kg/hr/set |
| Thermal Power: | 160000kcal/hr Or 120000kcal/hr | Water Comsuption: | 1-1.2ton/hr |
| Power Comsuption: | 200-250kw/hr | Worker: | 6-9 Person/shift |
| Highlight: | Pollution Free Clamshell Box Production Line,Paper Molded Clamshell Box Production Line |
||

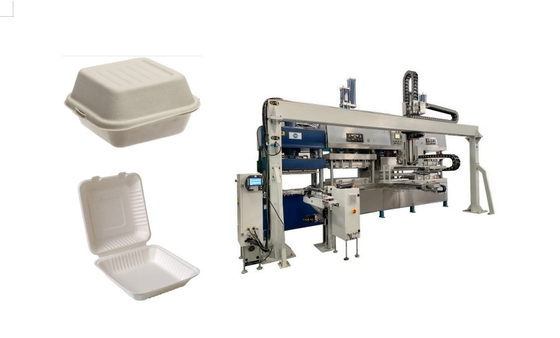

Paper molded pollution free clamshell box production line with single walking robot arm
Description
With help of walking robot arm on the beam roof and stacking robot , no man is needed for transferring of wet product tray among processes of forming, hotpressing and trimming, which has save much labor and enhance the stability of the whole production. it can produce a variety of disposable tableware , such as plate with compartment,sushi tray,food serving tray,disposable food tray,sugarcane tray and so on .
| Technical Description | |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
| Mold Platen Size | 1100x800mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Horizontal Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 5~8 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
Know-what
Advantages of molded fiber products:
(1) Environmentally friendly and degradable.
(2) Can be stored for long periods before use
(3)Can be waterproof and oil resistant.
(4) Wide source and low cost for raw material
(5)Less water consumption, no waste water discharge
(6)Recycling cost is low and can be reused.
Production Working Process:
Application:
