Product Details:
Payment & Shipping Terms:
|
| Product Type: | Biodegradable·pulp Molded Tableware Machine | Processing Type: | Pulp Molding Machine |
|---|---|---|---|
| Place Of Origin: | Made In China | Approval: | CE |
| Warranty: | 12 Month | Mold Base Size: | 1100*800 Mm/1300*1100mm |
| Highlight: | Pulp Molded Tableware Machine,Biodegradable Pulp Molded Tableware Machine |
||

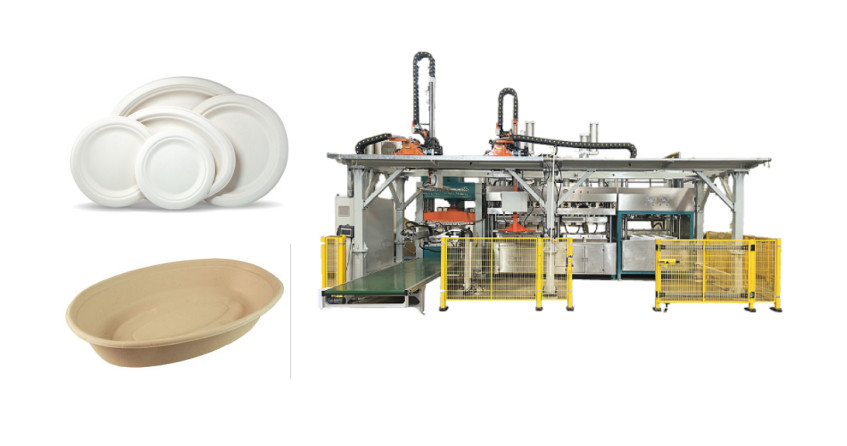

Machine Description
Pulp fiber bagasse tableware production line including pulping system, thermoforming machine (with forming, wet hot pressing & trimming all in one machine), vacuum system, air compressor system.
Automatic tableware machine with robot is greatly reduce labor cost, 1 worker can operate 3 tableware machines.
| Technical Description | |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
| Mold Platen Size | 1100x800mm/ 1300*1100mm |
| Production Capacity | 30-40kg/hr/set |
| Machine Automation | Automatic with Double Horizontal Walking Robot Arm |
| Workshop Requirement | ~ 800㎡ |
| Operator Required | 5~8 people/shift |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Forming Method | Vacuum forming |
| Drying Method | Dry in mold, thermal forming |
| Machine Function | Forming, drying, hot press all in one machine |
| Control | PLC+ Touch screen |
Key Advantages
Faster speed by automatic robot transfer
Less worker
Fully auto operating system
Application
Change mold could available to produce most kind of pulp tableware
Lunch box
Plate/Dish with/without compartment
Round tray
Meat tray
Bowl
Cups & Lids
Pizza box
Production Working Process:
Application:
