Product Details:
Payment & Shipping Terms:
|
| Rocessing Method: | Forming Wet Pressing | Raw Material: | Virgin Paper Pulp |
|---|---|---|---|
| Output: | 60pcs/hour - 250pcs/hour; | Automation: | Fully Automatic |
| Control Method: | PLC With HMI Screen | Wall Thickness Of Product: | 0.4–1.5 mm |
| Highlight: | Electronic Paper Tray Production Line,Moulded Paper Tray Production Line |
||
Semi-auto paper moulded electronic paper tray production line
Description
This production line is composed of reciprocating forming machine with double tank, natural drying line and hot pressed machine. This forming machine can simultaneously produce two kinds of industrial package product with different shape and thickness.
Specification:
| Capacity | 60-250kg/ hr |
| Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
| Workshop Requirement | 1000~ 1800㎡ |
| Operator Required | 4 -5 workers/ shift |
| Drying Method | Dry in mold, thermal forming |
| Forming Method | Vacuum forming |
| Electricity consumption | 180-400kw/hr |
| Water consumption | 1-2 tons/hr |
| Control | PLC+ Touch screen |
| Machine Material | All parts in contact with water is SS304 Stainless Steel |
Feature:
1. Easy to operate
2. Flexible machine setting
3. Low consumption of electricity
4. Can simultaneously produce two kinds of industrial package product
Product advantages
100% biodegradable & compostable molded fiber insert packaging.
Sustainable,environmentally,eco-friendly and recyclable.
Moulded pulp products made from natural fiber-based,renewable resources.
Anti-static,protective and cushioning.
Waterproof & oil resistant available.

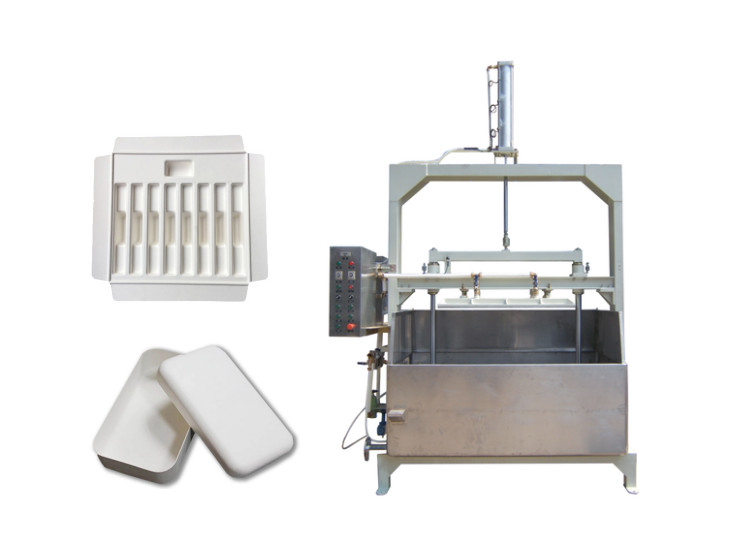

Illustrations of Machine & Product:
