Fully Automatic Wood Pulp Food Serving Tray Production Line

I'm Online Chat Now

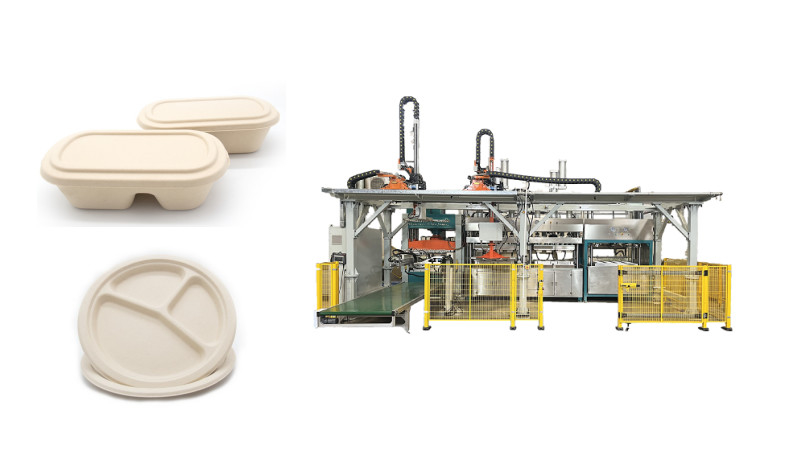

Fully Automatic Wood Pulp Food Serving Tray Production Line

Fully Automatic Wood Pulp Food Serving Tray Production Line
Fully Automatic Wood Pulp Food Serving Tray Production Line

Large Image :  Fully Automatic Wood Pulp Food Serving Tray Production Line

Product Details:
Place of Origin: Guangdong, China
Brand Name: ChuangYi
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 3 Sets
Price: Negotiation
Packaging Details: Export Standar Packing
Delivery Time: 60-90days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20sets
Detailed Product Description
Automation: Fully Automatic Raw Material: Bagasse/bamboo/wood/straw
Mold Size: 1300*1100 Or 1100*800mm Production Capacity: 1.5 Or 1.2 Tons/set/day
Thermal Power: 160000kcal/hr Or 120000kcal/hr Heating By Electricity: 171kw Or 141kw
Forming Method: Vacuum Suction Control Method: PLC And Touch Screen
Highlight:

Automatic Food Serving Tray Production Line

,

Wood Pulp Serving Tray Production Line

Fully automatic wood pulp food serving tray production line





The production of pulp molded food serving tray is a nature to nature process. It uses sugarcane bagasse pulp, bamboo pulp or wood pulp as raw material, no waste water or smell is generated during the production. The finished product can be 100% degradable





Technical Description
Machine Material All parts in contact with water is SS304 Stainless Steel
Mold Platen Size 1100x800mm
Production Capacity 30-40kg/hr/set
Machine Automation Automatic with Double Horizontal Walking Robot Arm​
Workshop Requirement ~ 800㎡
Operator Required 5~8 people/shift
Feeding raw material Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp)
Forming Method Vacuum forming
Drying Method Dry in mold, thermal forming
Machine Function Forming, drying, hot press all in one machine
Control PLC+ Touch screen






Features:




1. Screen frame transfer method is adopted,which reduces the consumption of vacuum and compressed air; less hole blocking chances and time for mold maintenance extended by 1-2 months,black spots over the products avoided;

2. Fully automatic operation on forming, hot pressing, trimming, stacking, reducing labor cost.





Production Application:


-Disposable Tableware
-Paper Plates

-Paper Bowls

-Fast Food Take-away Box and Lid
-Ready Meal Packaging Trays
-Supermarket Fresh Trays
-Branded Food Packaging
-Cup and Lid
-Cup Holder and Carriers





Production Working Process:



Fully Automatic Wood Pulp Food Serving Tray Production Line 0



Application:



Fully Automatic Wood Pulp Food Serving Tray Production Line 1
