Product Details:
Payment & Shipping Terms:
|
Mold Heating Modes: | Electric / Thermal Oil | Control System: | PLC With HMI Screen |
---|---|---|---|
Platen Size: | 1100x800 Mm | Automation: | Automatic With Double Walking Robot Arm |
Capacity: | 1~1.5 Ton/set/day | Drying Type: | Dry In Mould |
Highlight: | Lunch Tray Pulp Molded Production Machine,Tray Pulp Molded Production Machine |
Biodegradable lunch tray pulp molded production machine
Machine Description
Biodegradable lunch tray pulp molded production machine is full automatic with the help of robot which has significantly save a lot of labor. 1 worker can simultaneously operate 3 tableware machine. By using bagasse pulp, bamboo pulp, straw pulp, and other virgin pulp as raw material, the lunch tray comes out is eco-friendly and plastic-free, no badly smell or wasted water is generated during the production.
Technical Description | |
Machine Model | |
Mold Platen Size | 1100x800mm |
Production Capacity | 30-40kg/hr/set |
Machine Automation | Automatic with Double Walking Robot Arm |
Workshop Requirement | ~ 800㎡ |
Feeding raw material | Virgin pulp ( bagasse pulp/bamboo pulp/wood pulp/straw pulp) |
Forming Method | Vacuum forming |
Drying Method | Dry in mold, thermal forming |
Machine Function | Forming, drying, hot press all in one machine |
Control | PLC+ Touch screen |
Machine Material | All parts in contact with water is SS304 Stainless Steel |
Key Advantages of pulp molded food tray
Zero water waste,plastic free eco molded pulp fiber food trays.
Made from biodegradable & compostable sustainable pulp trays for salad,sushi pack.
Chemical free eco-friendly plant fiber food plate.
Water resistant,oil-proof ,no PFAS available.

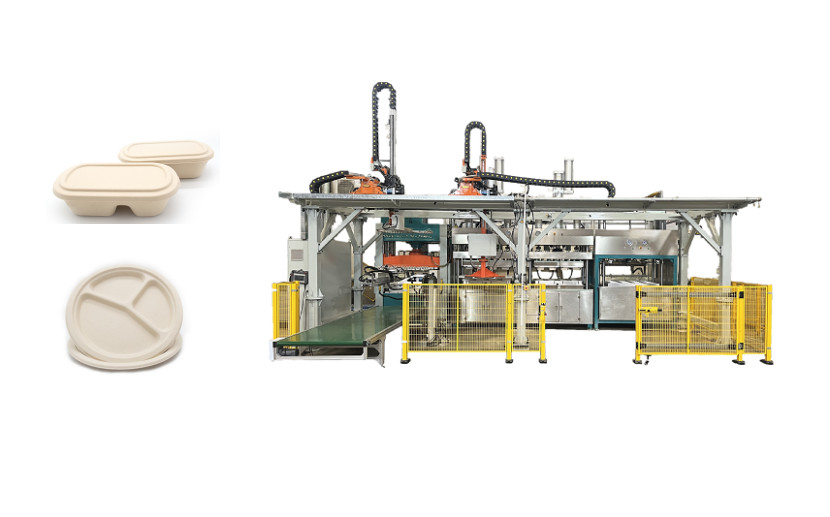

Illustration of machine and products
Illustration of products
